Name: SANYO Scroll Compressor (C-SB series C-SB263H8B)
Brand: Star-Worths Refrigeration Co. Ltd.
SKU: C-SB263H8B
Availability: InStock

Home Products Sanyo Compressor

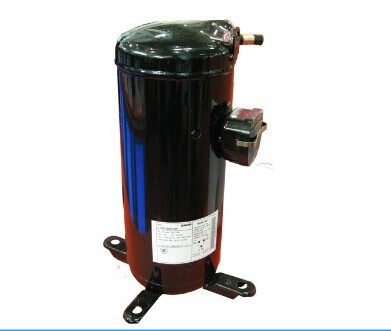

SANYO Scroll Compressor (C-SB series C-SB263H8B)

Product Details:

Place of Origin:	China
Brand Name:	Danfoss
Certification:	CE,ROHS,SGS
Model Number:	C-SB263H8B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	0
Packaging Details:	Wood Pallet
Delivery Time:	7 working Days
Payment Terms:	T
Supply Ability:	1000000PCS/Year

Contact Now

Detailed Product Description

Keywords:	Sanyo Scroll Compressor

SANYO Scroll Compressor(C-SB Series)

R22-B8(50Hz 380-415V/60Hz 440-460V) scroll compressor

Specification:

PH.: 3

Output: 3.5HP

Displacment: 51.8cm3/rev

Compressor model: C-SB263H8B

Compressor code: 80983188

50Hz Nomial capacity: 9.2kw 31.2kbtu/h

50Hz Cop: 3.10W/w 10.6BTU/wh

60Hz Nomial capacity: 11.2kw 38.2kbtu/h

60Hz Cop: 3.20W/w 10.9BTU/wh

Outline graph code: B

R22, 380v-415v/50Hz, 440v-460v/60Hz
Out Put	Displac ement	Compressor	Compressor	50Hz				60Hz				Outline Graph Code
Out Put	Displac ement	Model	Code	Nominal Capacity		COP		Nominal Capacity		COP
HP	cm3/rev			kW	kBTU/h	W/W	BTU/Wh	kW	kBTU/h	W/W	BTU/Wh
3.5	51.8	C-SB263H8B	809 831 88	9.15	31.2	3.1	10.6	11.2	38.2	3.2	10.9	B
	51.8	C-SB263H8C	809 832 88	9.15	31.2	3.1	10.6	11.2	38.2	3.2	10.9	A
	55.7	C-SB263H8A	809 830 88	9.6	32.8	3.1	10.6	11.8	40.3	3.19	10.9	B
4	66.8	C-SB303H8A	809 840 88	11.8	40.3	3.23	11	14.4	49.2	3.27	11.2	A
4	66.8	C-SB303H8G	809 846 88	11.8	40.3	3.23	11	14.4	49.2	3.27	11.2	At
4.5	77.4	C-SB353H8A	809 842 88	13.5	46.1	3.18	10.9	16.7	57	3.28	11.2	A
4.5	77.4	C-SB353H8G	809 847 88	13.5	46.1	3.18	10.9	16.7	57	3.28	11.2	At
5	83.2	C-SB373H8A	809 850 88	14.5	49.5	3.19	10.9	17.9	61.1	3.23	11	A
	83.2	C-SB373H8G	809 856 88	14.5	49.5	3.19	10.9	17.9	61.1	3.23	11	At
	85.5	C-SB373H8F	809 855 88	15	51.2	3.19	10.9	18.4	62.8	3.2	10.9	A
5.5	90.6	C-SBR195H38A	-	16	54.6	3.2	10.9	19.4	66.2	3.23	11	A
6		C-SB453H8A	809 860 88	17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	A
	100	C-SB453H8F	809 865 88	17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	Jt
		C-SB453H8G	809 866 88	17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	At
7	110.2	C-SBR235H38A	-	19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	A
7	110.2	C-SBR235H38B	-	19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	At
