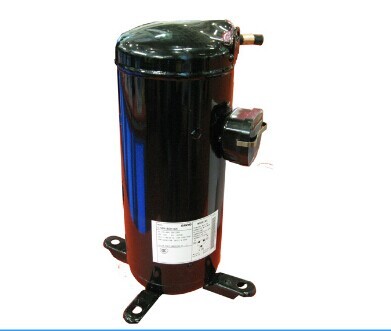

SANYO Scroll Compressor (C-SC903H8K)

Product Details:

Place of Origin:	China
Brand Name:	Danfoss
Certification:	CE,ROHS,SGS
Model Number:	C-SC903H8K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	0
Packaging Details:	Wood Pallet
Delivery Time:	7 working Days
Payment Terms:	T
Supply Ability:	1000000PCS/Year

Contact Now

Detailed Product Description

Keywords:	Hermetic Compressor China

SANYO Scroll Compressor (C-SC903H8K)

SANYO Scroll Compressor(C-SC Series)
R22/R407A/R404

Applicable to ordinary conditions in equivalent conditions, such as standard rating conditions, maximum operating conditions, low temperature conditions, etc.

Model	Code	Out Put HP	Displ. cm3/rev	50Hz				60Hz				Outline Graph Code
				Nominal Capacity		COP		Nominal Capacity		COP
				kW	kBTU/h	W/W	BTU/Wh	kW	kBTU/h	W/W	BTU/Wh
C-SBR235H38A		7	110.2	19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	A
C-SBR235H38B		7	110.2	19.2	65.6	3.2	10.9	23.2	79.2	3.27	11.2	At
C-SC583H8H	809 284 88	8	131.9	23.6	80.6	3.3	11.3	28.5	97.3	3.26	11.1	D
C-SC583H8K	809 286 88		131.9	23.6	80.6	3.3	11.3	28.5	97.3	3.26	11.1	Dt
C-SC603H8H	809 281 88		137	24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	D
C-SC603H8K	809 283 88		137	24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	Dt
C-SC673H8H	809 291 88	9	148.8	26.5	90.5	3.29	11.2	32	109.3	3.27	11.2	D
C-SC673H8K	809 293 88	9	148.8	26.5	90.5	3.29	11.2	32	109.3	3.27	11.2	Dt
C-SC753H8H	809 201 88	10	171.2	30.6	104.5	3.38	11.5	36.9	126	3.32	11.3	E
C-SC753H8K	809 203 88	10	171.2	30.6	104.5	3.38	11.5	36.9	126	3.32	11.3	Et
C-SC863H8H	809 224 88	12	199.1	35.2	120.2	3.32	11.3					E
C-SC903H8H	809 221 88		205.4	36.1	123.3	3.31	11.3					E
C-SC903H8K	809 223 88		205.4	36.1	123.3	3.31	11.3					Et
